Few furniture pieces have achieved the legendary status of the Eames Molded Plywood Chair. Designed by Charles and Ray Eames in the 1940s, this chair revolutionized modern furniture design through its elegant curves, human-centered comfort, and innovative use of molded plywood.
Praised by Time Magazine as “the chair of the century,” it remains one of the most iconic designs in the history of industrial design. Yet, behind its simple appearance lies a story of technical experimentation, precision craftsmanship, and material innovation.
In this article, we’ll take you inside the making of the Eames molded plywood chair — exploring the materials, molding process, and design principles that make this classic both timeless and modern.
Charles and Ray Eames believed that design should serve people, blending comfort, beauty, and function. Their goal was to create a chair that would fit the human body perfectly — organic, ergonomic, and affordable.
However, traditional wood was too rigid to achieve the desired shapes. So they began experimenting with thin wood veneers, which could be bent and layered using heat and pressure — a technique inspired by airplane part production during World War II.
After years of trials, the Eameses developed a revolutionary process that allowed them to mold plywood into three-dimensional forms without cracking — giving birth to a new era of modern furniture design.

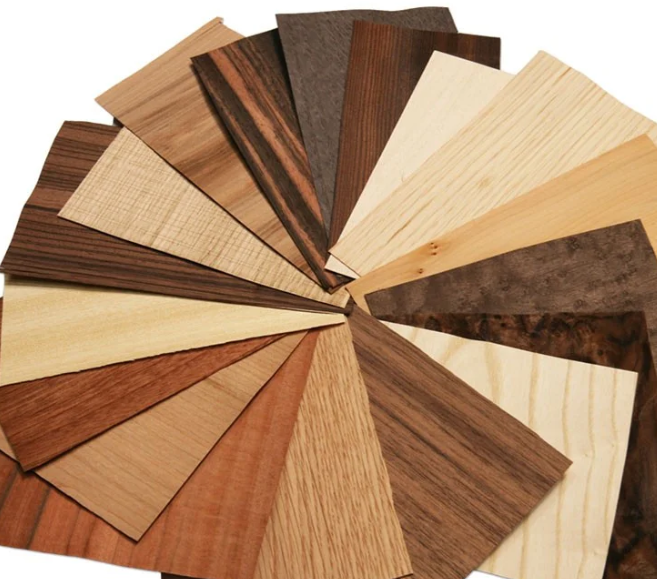

At the core of every Eames molded plywood chair is a stack of ultra-thin wood veneers, typically made from birch, walnut, ash, or palisander (rosewood).
Each veneer sheet is:
Approximately 1.5 mm thick
Carefully selected for grain consistency
Dried and conditioned to prevent warping
These veneers are then cross-laminated — meaning the wood grain direction alternates with each layer to enhance strength and dimensional stability.
To bond the veneers, formaldehyde-free or phenolic adhesives are applied evenly across the surface. This ensures the final product is durable, safe, and environmentally friendly.
The true magic of the Eames molded plywood chair lies in its molding process — where flat layers of wood are transformed into graceful, organic curves.
The mold is a precision-engineered steel or aluminum form that defines the chair’s shape — seat, backrest, or entire shell.
Each mold has two parts: male and female dies, matching perfectly to ensure even pressure during molding.
Technicians stack the veneers on the mold in the correct sequence — glue layer by glue layer — usually five to seven sheets thick depending on the desired strength and flexibility.
The stacked veneers are placed in a hot press machine at approximately 120–150°C with a pressure of 70–100 psi (5–7 bar).
This stage lasts about 10–15 minutes, allowing the adhesive to cure and the wood layers to permanently take shape.
The result: a seamless, three-dimensional wooden shell — smooth, lightweight, and incredibly strong.
After pressing, the molded plywood parts are cooled in controlled conditions to stabilize their shape and prevent spring-back.
Any imperfections, such as bubbles or slight warping, are manually corrected at this stage.
Once the molded shells are ready, the next stage involves precision trimming and surface refinement.
CNC cutting machines trim excess material to achieve perfect contours.
Skilled craftsmen then hand-sand the edges to ensure a soft, tactile feel.
The edges of genuine Eames chairs are slightly rounded and polished, revealing the layered wood structure — one of its signature design details.
This combination of machine accuracy and hand finishing is what gives the chair its refined yet organic character.
The surface of the Eames molded plywood chair can be finished in several ways, depending on the design version:
Natural wood veneer (walnut, ash, cherry, etc.)
Stained finishes for darker tones
Lacquered or painted surfaces for a contemporary aesthetic
Each piece undergoes multiple coats of lacquer or oil, applied by hand or spray, followed by careful polishing.
This not only enhances the wood’s beauty but also protects it from moisture and UV exposure.
The final assembly brings the molded plywood shell together with its metal or wooden base.
Common base types include:
The “LCW” (Lounge Chair Wood) – wooden legs for a warm, organic look
The “DCM” (Dining Chair Metal) – steel-tubed base for a sleek, industrial feel
The “LCM” (Lounge Chair Metal) – lounge-style with chrome or black finish
Each base is carefully aligned and secured using rubber shock mounts — small but crucial components that absorb movement and enhance comfort.
These mounts were another Eames innovation, allowing the seat and back to flex independently and providing the chair’s signature “give.”
Before leaving the factory, every Eames molded plywood chair undergoes rigorous quality control tests, including:
Load-bearing tests (static and dynamic)
Humidity and temperature resistance tests
Surface coating adhesion
Visual inspection for grain uniformity, cracks, or uneven finish
Only pieces that meet strict Herman Miller or Vitra production standards are certified as authentic Eames chairs.
Although developed over 80 years ago, the Eames molded plywood chair continues to set benchmarks for eco-conscious production.
Modern manufacturers use:
FSC-certified veneers from responsibly managed forests
Water-based adhesives with low VOC emissions
Efficient energy use in hot-press and finishing systems
This commitment to sustainability keeps the Eames legacy relevant in today’s environmentally aware design culture.
The brilliance of the Eames molded plywood chair lies in its perfect balance between technology and humanity.
Its design embodies:
Form and function — every curve follows ergonomic logic
Craft and industry — handmade quality meets mass production
Timeless simplicity — fitting in homes, offices, and galleries alike
Even after eight decades, it remains a masterpiece of modern design — a testament to the power of experimentation and craftsmanship.
The making of the Eames molded plywood chair is not merely a manufacturing process; it’s a story of innovation, artistry, and human-centered design.
Each chair carries the legacy of Charles and Ray Eames — a legacy of curiosity, technical mastery, and deep respect for materials.
From carefully selected veneers to precision-molded curves, every step in the process reflects a pursuit of perfection. That’s why the Eames molded plywood chair isn’t just a piece of furniture — it’s a living example of design that endures through time.
Q1: Who designed the Eames molded plywood chair?
It was designed by Charles and Ray Eames in the early 1940s and produced by Herman Miller (U.S.) and later by Vitra (Europe).
Q2: What makes molded plywood different from regular plywood?
Molded plywood is pressed into three-dimensional shapes under heat and pressure, while regular plywood is flat and rigid.
Q3: How long does it take to make one Eames molded plywood chair?
From veneer selection to final finishing, the process typically takes 3–5 days, depending on production volume.
Q4: Is the chair made from real wood?
Yes, authentic Eames chairs use genuine wood veneers such as walnut, ash, or birch, bonded over multiple layers.
Q5: How can I tell if an Eames chair is authentic?
Look for the manufacturer’s logo (Herman Miller or Vitra), high-quality finishing, smooth curved forms, and official labeling.
